Wheal Prosper is a lovely little engine house right on the coast at Rinsey Head. Unlike its name, this mine was fairly unsuccessful, opening in 1860 on the end of Trewevas’s sett, mining mostly tin and a little copper. It worked for six years, closing in 1866.

Wheal Prosper

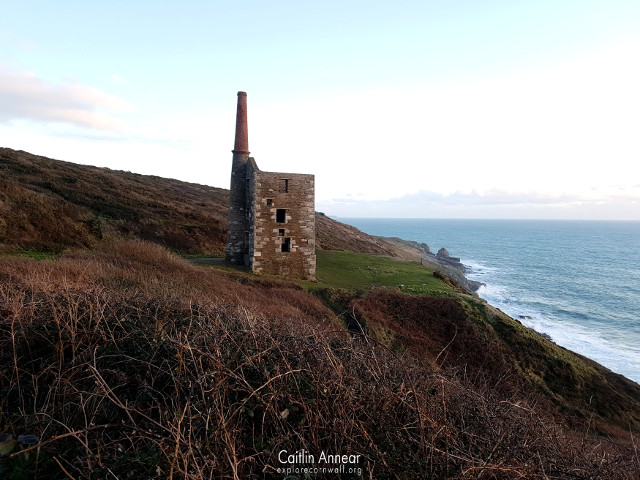

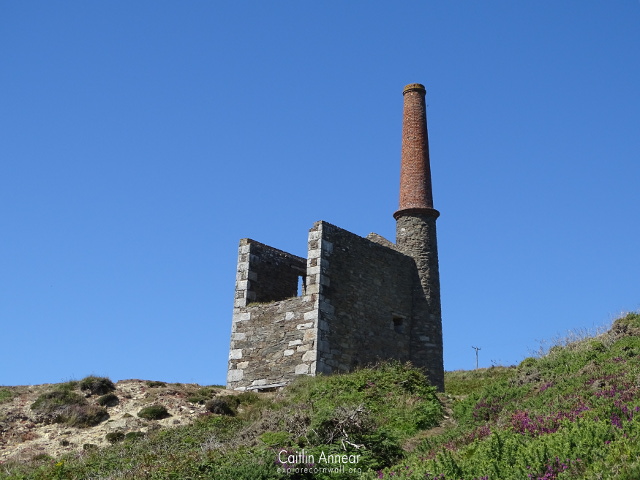

The only real prominent remaining feature is the 30″ pumping engine on Engine shaft. It was built using local slate and granite, and when consolidated with local materials by the National Trust in 1970-71. The only other engine house on the site was the combined whim and stamps engine. This housed a 20″ rotative engine, also built in 1860, and drove 16 heads of stamps. Nothing of this remains today.

Wheal Prosper
Shafts
Lodes
Output
Shafts

Engine, Leeds and Mitchell.
Engine was 462-feet (140m) deep and worked by the pumping engine.
Leeds was vertical for 216-feet (65m) to adit level, then on for another 60-feet; this was originally drained by horse power before also being worked by the pumping engine.
Mitchell’s was worked by the whim/stamps engine and reached 70-fathoms (128m).

Lodes

Wheal Prosper

Output

1865-66
7 tons (7, 112 kg) of black tin

Wheal Prosper

The adit comes out at the foot of the cliffs, which can be reached down the path to the beach.


Access
Parking
References
Access

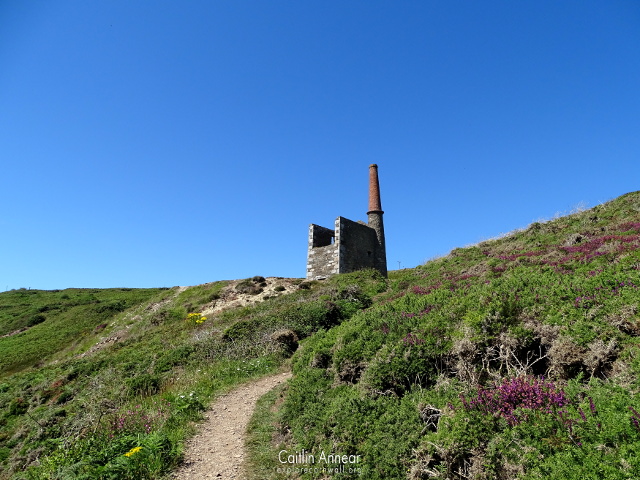

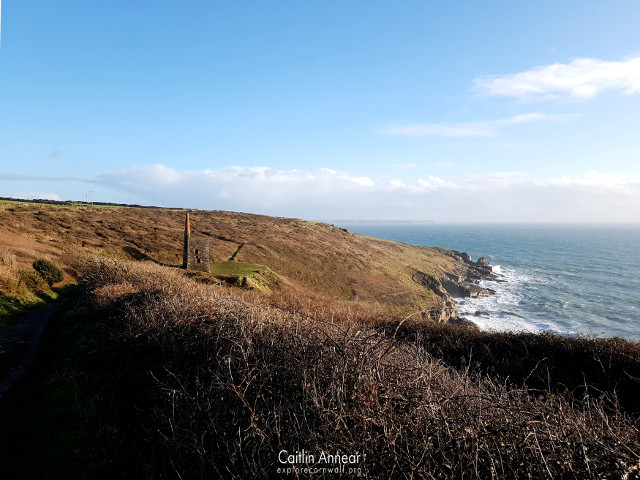

The whole site is easily accessed along the coast path. The engine house has been consolidated and all of the shafts are capped/filled in.

Parking

There’s a moderate sized car park run by the National Trust that is free to use.

References

Brown, K. and Acton, B. (2007) Exploring Cornish Mines: Volume Two. 2nd edn. Truro: Landfall Publications.

Dines, H. G. (1956) The metalliferous mining regions of south-west England. British Geological Survey.

Nance, D. and Brown, K. (2014) A complete guide to the engine houses of West Cornwall. Gloucestershire: Lightmoor Press.
