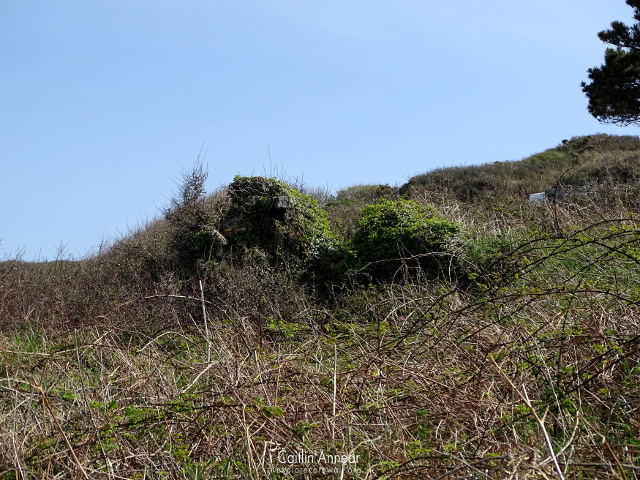

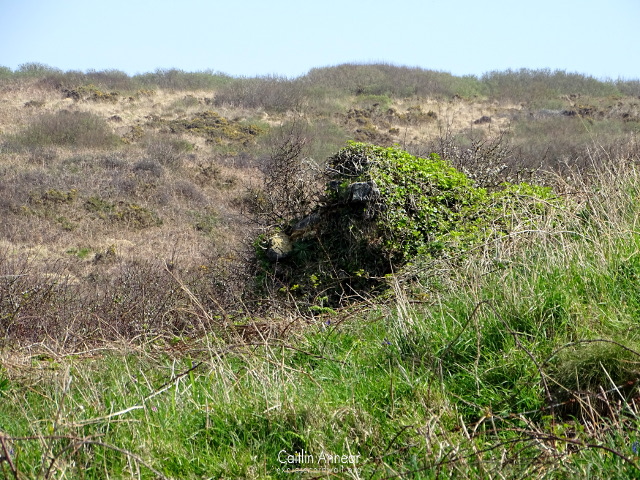

Gurnard’s Head Mine overlooks Treen Cove to the east of Gurnard’s Head.

Gurnard's Head mine

Work here was underway by 1821 under the name Treen Copper Mine.

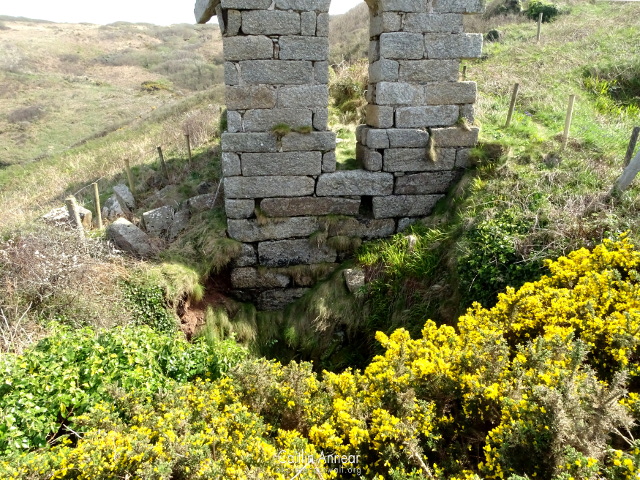

Bob wall of Gurnard's Head Mine

Its first shaft was so close to the high water mark that it needed a stone collar to prevent flooding.

During the early working, Engine shaft reached a depth of 47-fathoms (86m), however this was in very poor ground. The only other mentioned shafts are the creatively named North and South shafts, which reached final depths of 90 and 80-fathoms respectively (165 and 146m).

Chimney remains Gurnard's Head
Chimney remains

The mine was known as Gurnard’s Head from 1834 until 1843. From 1844 it was worked under the name North United and Gurnard’s (Gurnett’s) Head mine.

Gurnard's Head

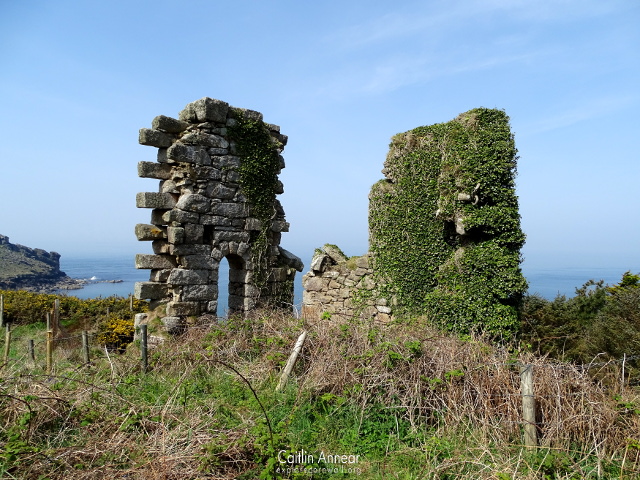

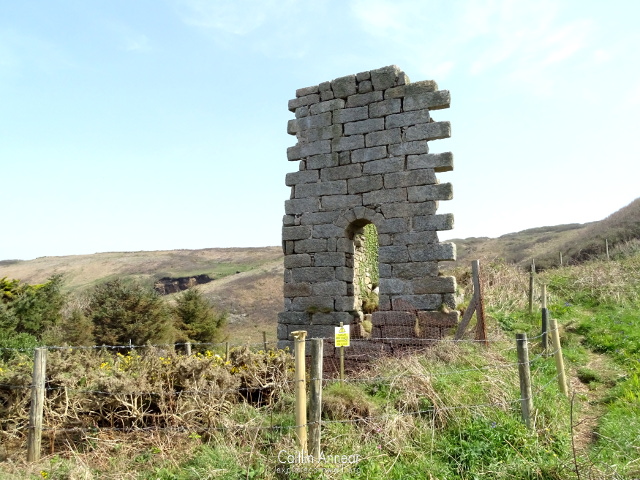

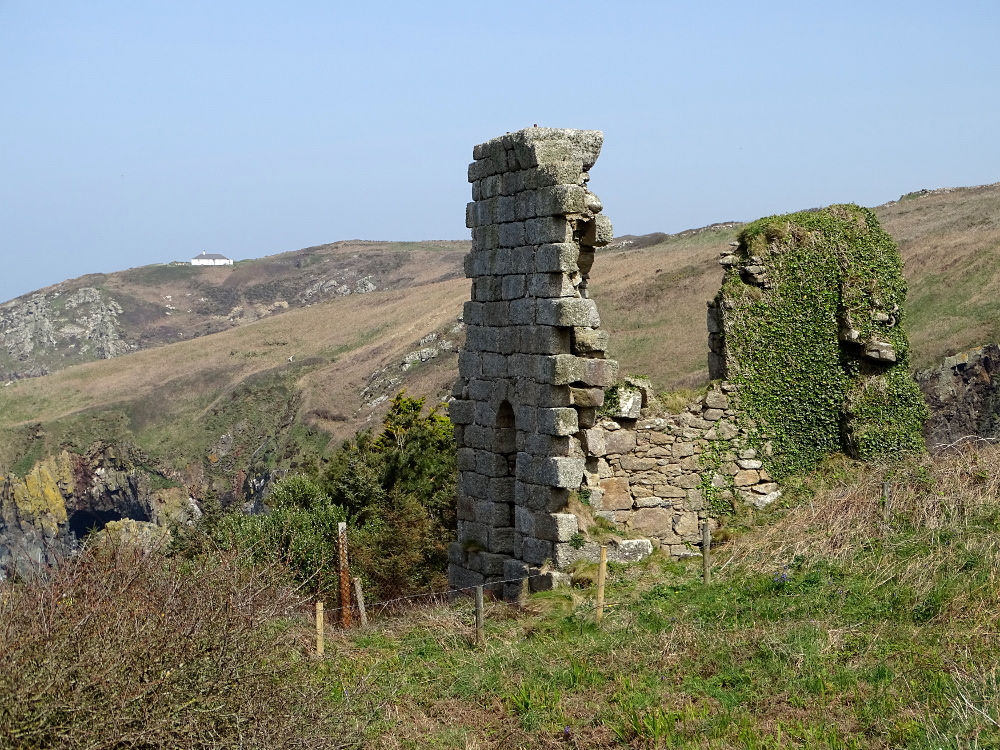

The remaining engine house is that of the 30″ Harvey’s pumping engine built in 1844 on South shaft. It’s boiler house with its one boiler would have stood on the south-eastern side next to the separate stack. The engine was sold in 1848 to the Spanish Guadalcanal Mine.

To the south of the engine house are remains of another building, however it is not clear what this was.

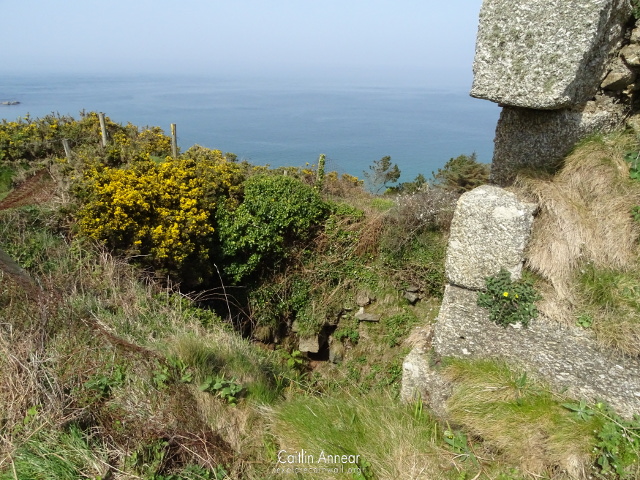

Gurnard's Head south shaft
South shaft
Gurnard's Head and the cove

Output includes:
1834 and 1842: 24 tons of copper
1853: 25 tons of 12% copper

Gurnard's Head shaft

Access:
The engine house can be easily found on the coastpath. The shaft remains open and fenced off.

Gurnard's Head

References

Dines, H. G. (1956) The metalliferous mining regions of south-west England. British Geological Survey.

Hamilton-Jenkin, A. K. (1961) Mines and Miners of Cornwall: I St Ives. Marazion: Worden Limited.

Nance, D. and Brown, K. (2014) A complete guide to the engine houses of West Cornwall. Gloucestershire: Lightmoor Press.
